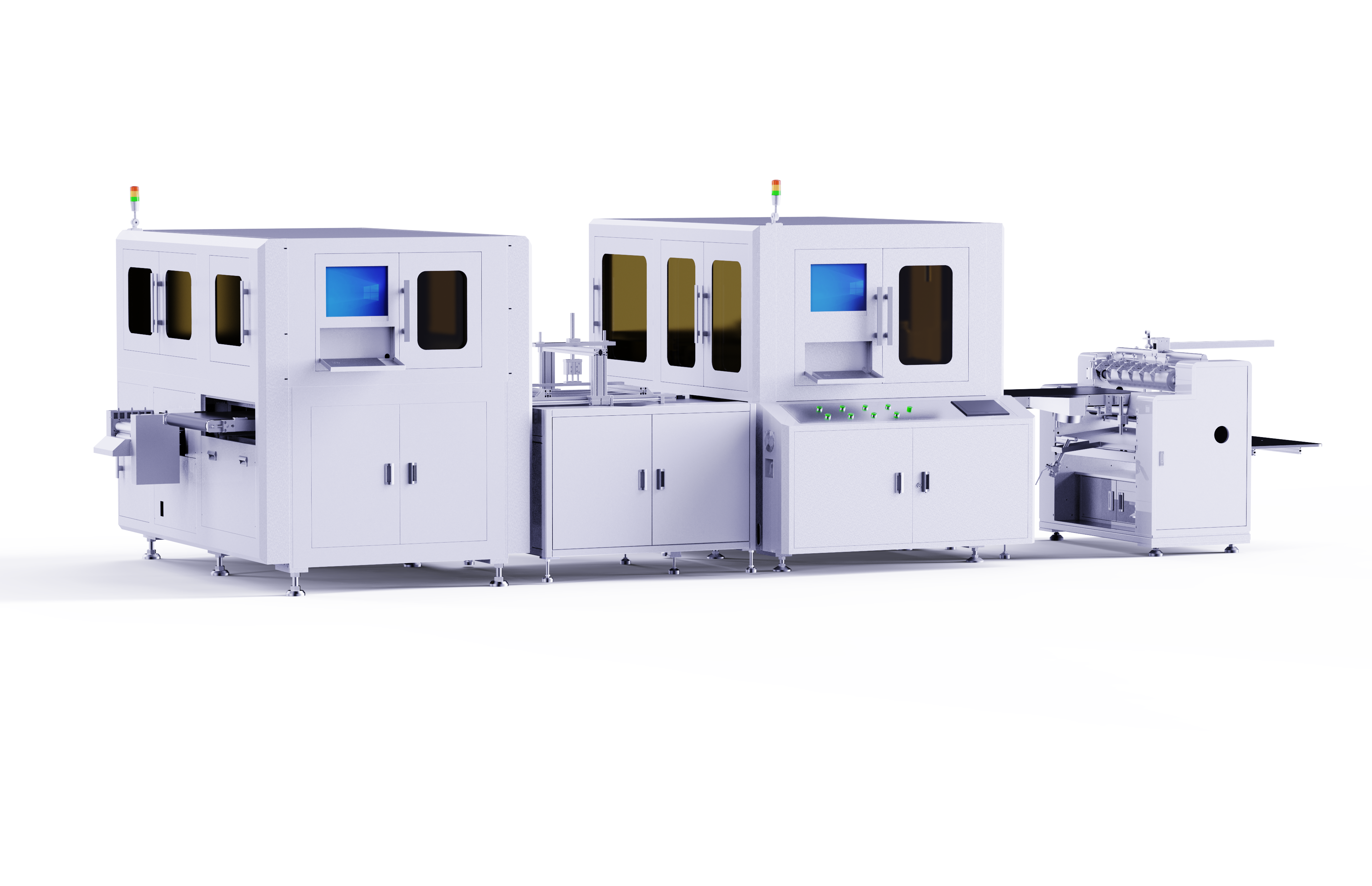

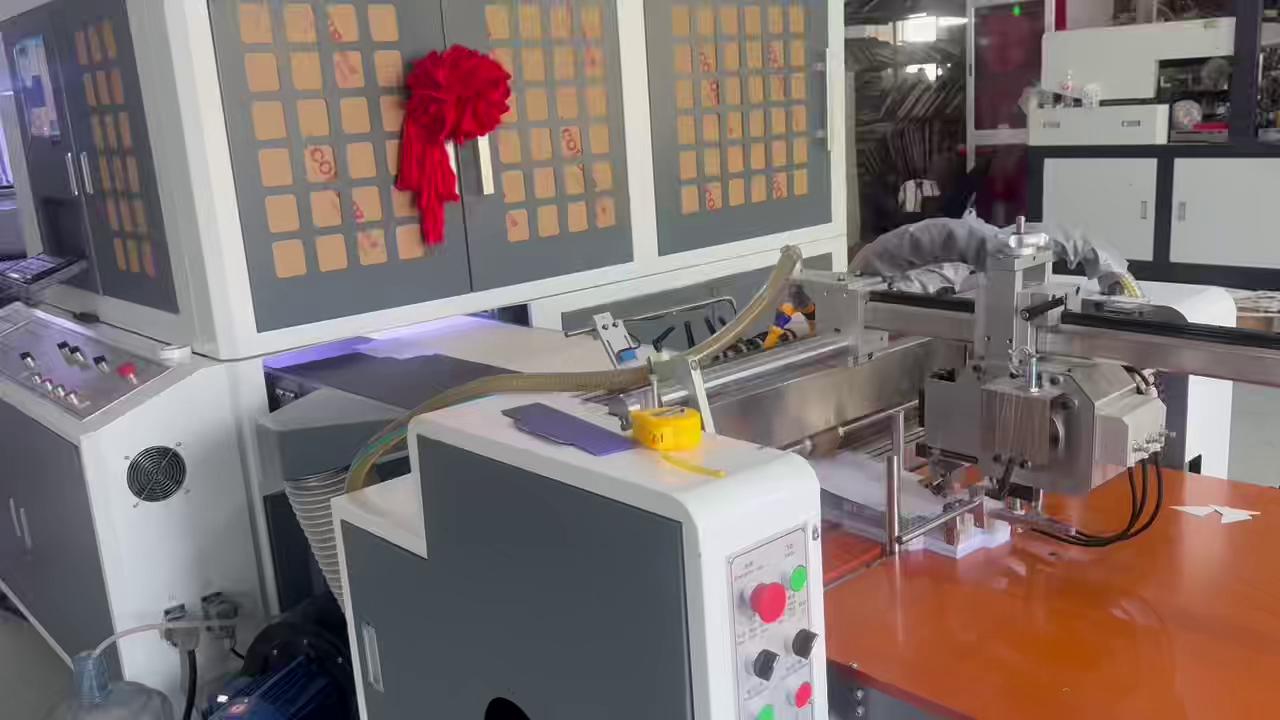

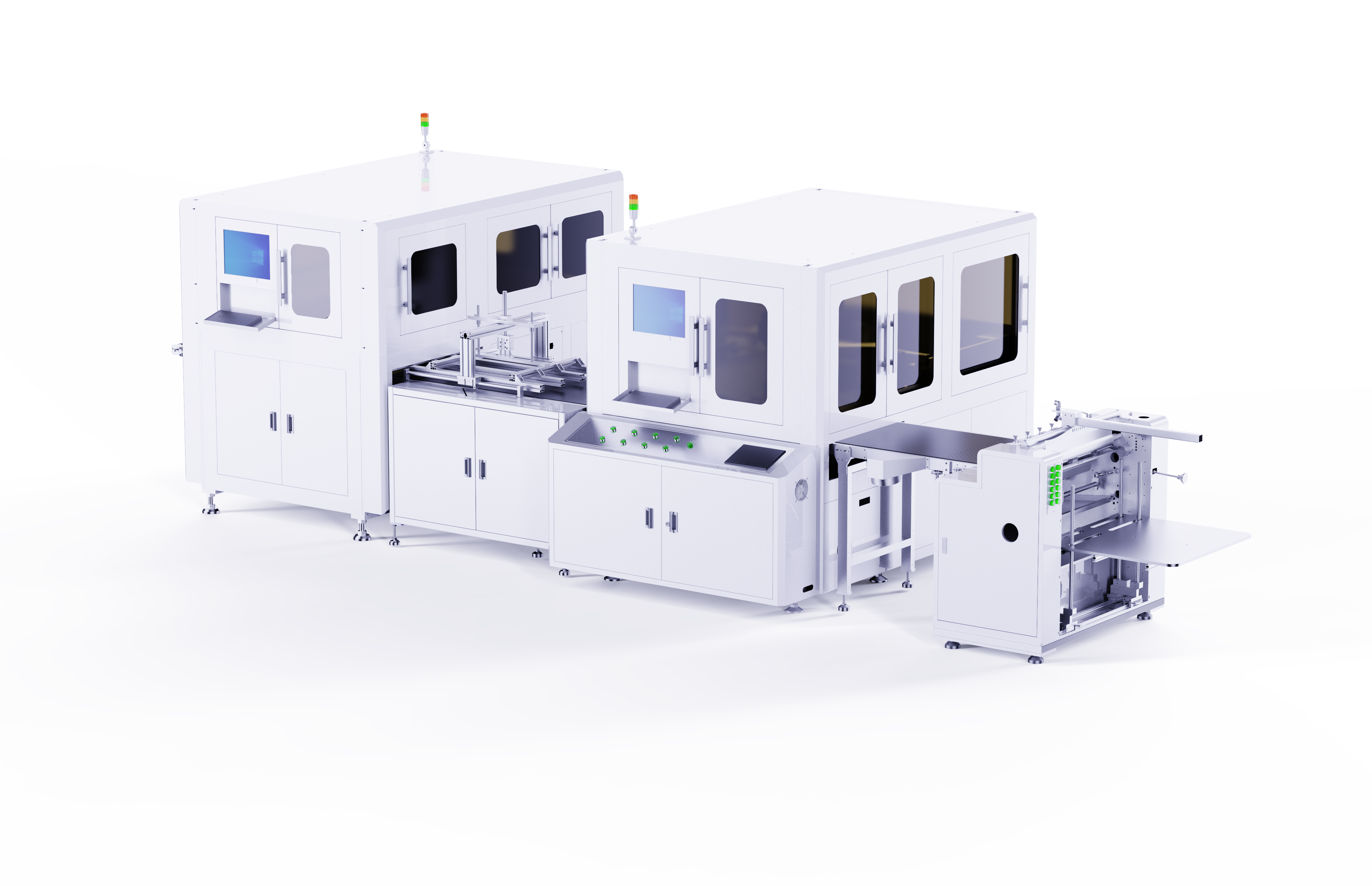

Fully Automatic Folding Box Side Flanging & Case Wrapping Multi-functional Machine

Equipment Features

1. This machine adopts a feeder cam mechanism for paper feeding, featuring a stable and efficient structure.

2. The machine system adopts electronic cam motion control, ensuring smooth, steady, gentle, stable and efficient operation.

3. Equipped with an advanced visual positioning system and high-precision robotic arm for panel positioning, forming and material picking, the machine completes positioning and material picking quickly and accurately.

4. The paper feeding conveyor is fitted with a high-power suction fan to achieve more stable and accurate paper conveying.

5. The cardboard feeding table is equipped with an automatic stop device for cardboard shortage, which effectively reduces the product loss rate.

6. The fully automatic folding box edge folding machine adopts a visual deviation correction structure, combined with a unique automatic edge shoveling and roller edge pressing structure, which guarantees the finished product qualification rate.

7. The feeding platform adopts table-type stacking conveying and feeding design for more convenient material loading.

Equipment Parameters

• Model: GJ-7520D

• Max Product Size: 750*200mm

• Min Product Size: 120*40mm

• Machine Dimension: 7700*2600*1900mm

• Weight: 3500KG

• Power: 380V-20KW

• Face Paper Thickness: 100~200g

• Production Speed: 25-32pcs/min

• Positioning Precision: ±0.05mm

• Grey Board Thickness: 0.5~2.0mm

• Custom sizes are available per customer requirements

Concise Promotion Terms (For Signs & Parameter Panels)

• High finished yield

• Fast accurate feeding

• Innovative feed structure

• Easy & fast operation

• Multi-material compatible

• Stable high-efficiency production
